رافعات من 8 طن حتي 10 طن

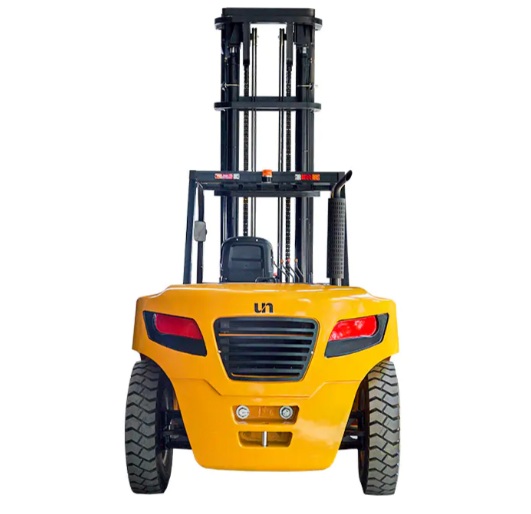

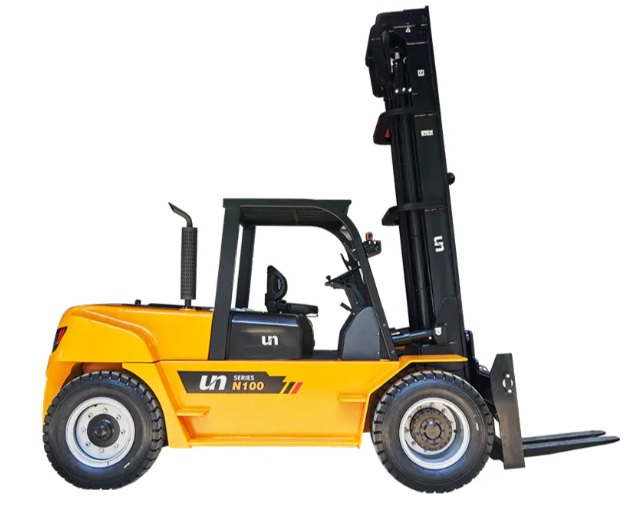

تم تصميم الرافعات الشوكية الديزل UN 5.0T-10T خصيصًا لتطبيقات الخدمة الشاقة بأقصى كفاءة وأقل تكلفة تشغيل. إنها تتبنى التصميم الرائد وتكنولوجيا التصنيع ومجموعة نقل الحركة الموثوقة والأنظمة الهيدروليكية.
تم اختبار جميع الطرز من قبل السوق بحيث يمكن الوثوق بها في جميع الصناعات والحصول على اعتراف من ملايين العملاء في جميع أنحاء العالم.
مواصفات الرافعه
|
Manufacturer |
|
UN |
||||||
|
Model |
|
FD50T |
FD60T |
FD70T |
FD80T |
FD100T |
||
|
Power Type |
|
Diesel |
||||||
|
Rated load Capacity |
Q(kg) |
5000 |
6000 |
7000 |
8000 |
10000 |
||
|
Load Centre |
C(mm) |
600 |
||||||
|
Rated Lift Height |
H3(mm) |
3000 |
||||||
|
Free Lift Height |
H2(mm) |
152 |
152 |
152 |
120 |
120 |
||
|
Fork Size (L*W*T) |
mm |
1220x150x60 |
1220x150x60 |
1220x150x65 |
1220x175x75 |
1220x175x80 |
||
|
Mast Tilt Angle (F/R, α°/β°) |
deg |
6°/12° |
||||||
|
Fork Overhang (Wheel Center to Fork Face) |
X1(mm) |
585 |
585 |
585 |
721 |
721 |
||
|
Rear Overhang |
X2(mm) |
640 |
640 |
720 |
760 |
760 |
||
|
Ground Clearance (Bottom of Mast) |
H7(mm) |
200 |
200 |
200 |
250 |
250 |
||
|
Length to Face of Fork (Without Fork) |
L1(mm) |
3510 |
3510 |
3590 |
4040 |
4270 |
||
|
Overall Width |
B1(mm) |
1996 |
1995 |
1996 |
2165 |
2166 |
||
|
Mast Lowered Height |
H1(mm) |
2515 |
2515 |
2615 |
2695 |
2845 |
||
|
Mast Extended Height (With Backrest） |
H4(mm) |
4437 |
4437 |
4437 |
4020 |
4260 |
||
|
Overhead Guard Height |
H5(mm) |
2445 |
2445 |
2445 |
2520 |
2540 |
||
|
Turning Radius （Outside） |
Wa(mm) |
3260 |
3280 |
3340 |
3700 |
4100 |
||
|
Min.Aisle width for pallets |
Asl(mm) |
5285 |
5285 |
5365 |
5645 |
6045 |
||
|
Travel Speed (No Load) |
km/h |
23/21 |
23/21 |
23/21 |
21/18 |
19/16 |
||
|
Lifting Speed (No Load/Full Load) |
mm/sec |
530/500 |
530/500 |
530/490 |
400/360 |
380/328 |
||
|
Lowering Speed (No Load/Full Load) |
mm/sec |
≥300/≤600 |
≥300/≤600 |
≥300/≤600 |
≥300/≤600 |
≥300/≤600 |
||
|
Max.Drawbar Pull (Full Load) |
KN |
53 |
53 |
52 |
58 |
57 |
||
|
Max.Gradeability(Full Load) |
% |
32 |
27 |
24 |
20 |
20 |
||
|
Tyre (Front x 4) |
mm |
8.25-15-14PR |
8.25-15-14PR |
8.25-15-14PR |
8.25-20-14PR |
9.00-20-14PR |
||
|
Tyre (Rear x 2) |
mm |
8.25-15-14PR |
8.25-15-14PR |
8.25-15-14PR |
8.25-20-14PR |
9.00-20-14PR |
||
|
Front Tread |
mm |
1470 |
1470 |
1470 |
1600 |
1600 |
||
|
Rear Tread |
mm |
1700 |
1700 |
1700 |
1700 |
1700 |
||
|
Wheelbase |
Y(mm) |
2250 |
2250 |
2250 |
2500 |
2800 |
||
|
Total Weight |
|
7980 |
8640 |
9350 |
11850 |
12900 |
||
|
Front Axle Weight Distribution (Full Load) |
|
11660 |
13050 |
14570 |
17800 |
20610 |
||
|
Rear Axle Weight Distibution (Full Load) |
|
1320 |
1590 |
1780 |
2050 |
2290 |
||
|
Front Axle Distribution (No Load) |
kg |
4010 |
3860 |
3860 |
4740 |
5660 |
||
|
Rear Axle Weight Distribution (No Load) |
|
3970 |
4760 |
5490 |
7110 |
8240 |
||
|
Battery |
V/Ah |
24/90 |
||||||
|
Fuel Tank Capacity |
L |
120 |
||||||
|
Transmission Type |
|
Powershift |
||||||
|
Transmission Stage (FWD、RVS) |
|
2/2 |
||||||
|
Operating Pressure (For Attachments) |
Mpa |
20 |
||||||
